The RTSO-3004 carrier based on the NVIDIA Jetson Orin platform is officially available

With the growing demand for edge computing and artificial intelligence, the market is increasingly demanding lower power consumption and more powerful AI computing performance. In the face of huge market demand, Zhiwei Intelligence based on NVIDIA Jetson Orin platform, launched two Jetson Orin NX and Jetson Orin Nano platform E-series edge convergence terminal. With lower power consumption and more powerful AI computing power, it helps customers accelerate the development and deployment of AI in edge side scenarios.

Product introduction

The RTSS-3004 carrier board is an industrial-grade carrier board developed for Jetson 0rin NX core module, which can fully extract the powerful resources of Jetson Orin NX, and is compatible with Orin Nano core module. Compared with Jetson Xavier NX, the RTSS-3004 carrier board is compatible with Orin Nano core module. The Jetson Orin NX delivers up to five times the performance of the Jetson Xavier NX at a smaller size and lower power consumption (10 to 25W). Brings higher performance and inference to edge computing scenarios. Suitable for drones, autonomous guided vehicles (AGVs), autonomous mobile robots (AMRs), robotics and visual AI applications.

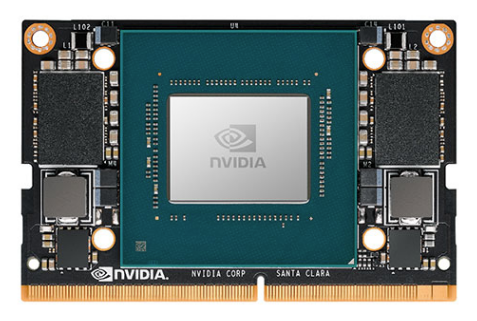

Core introduction

NVIDIA Jetson Orin™ NX offers up to five times the performance and twice the number of NVIDIA CUDA® cores compared to NVIDIA Jetson Xavier™ NX, as well as high-speed interface support for multiple sensors. The Jetson Orin NX has 100 TOPS computing power that supports multiple concurrent AI inference pipelines, and is small in size and excellent in performance.

The NVIDIA Jetson Orin™ Nano family of modules is small in size but delivers AI performance up to 40 TOPS, with power options ranging from 5 watts to 15 watts. It delivers up to 80x more performance than the NVIDIA Jetson Nano and sets a new standard for entry-level edge AI.

Configuration 1:
The RTSO-3004 is equipped with Jetson Orin NX 8GB, providing 70TOPS high-performance computing power, and is equipped with 32 Tensor Core 1024-core NVIDIA Ampere architecture Gpus with a maximum frequency of 765Mhz. It uses a 6-core Arm Cortex A78AE v8.2 64-bit CPU with 1.5MB L2 + 4MB L3 and a maximum frequency of 2Ghz.

Configuration 2:
The RTSO-3004 is equipped with Jetson Orin NX 16GB, provides 100TOPS high performance computing power, and is equipped with 32 Tensor Core 1024-core NVIDIA Ampere architecture Gpus with a maximum frequency of 918Mhz; It uses an 8-core Arm Cortex A78AE v8.2 64-bit CPU with 2MB L2 + 4MB L3 and a maximum frequency of 2 Ghz.

Configuration 3:
The RTSO-3004 is equipped with Jetson Orin Nano 4GB, which provides 20TOPS high-performance computing power and 512 NVIDIA Ampere architecture Gpus with 16 Tensor cores, with a maximum frequency of 625 MHz. It features a 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU with 1.5MB L2 + 4MB L3 and a maximum frequency of 1.5Ghz.

Configuration 4:
The RTSO-3004 is equipped with Jetson Orin Nano 8GB, provides 40TOPS high-performance computing power, and is equipped with 32 Tensor Core 1024-core NVIDIA Ampere architecture Gpus with a maximum frequency of 625Mhz. It features a 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU with 1.5MB L2 + 4MB L3 and a maximum frequency of 1.5Ghz.

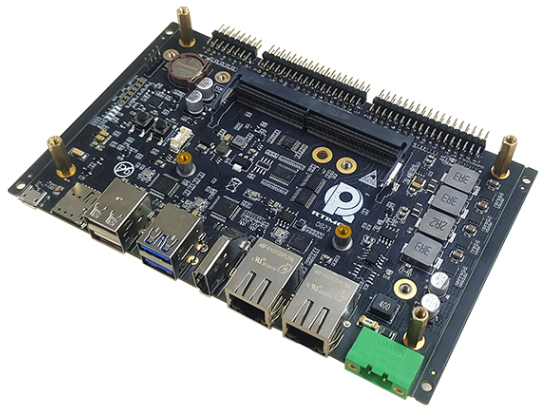

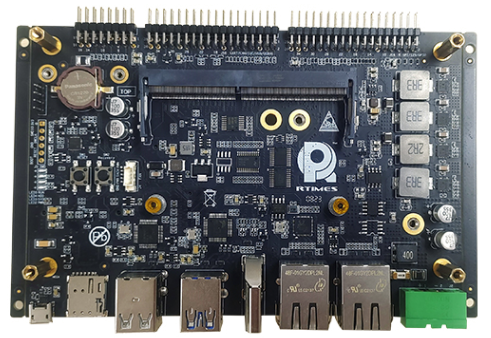

Product display

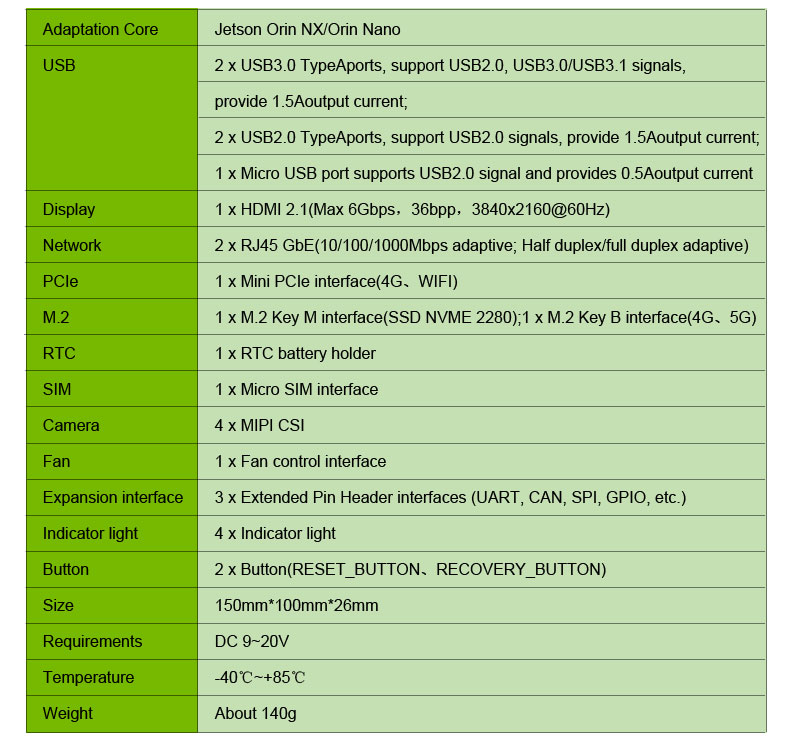

Product characteristics
