Jetson Series One Page Selection Decision Table

（Jetson Thor/AGX Orin / Orin NX / Orin Nano）

1. Quick selection mnemonic

• Go to high computing power, go to mass production, make humanoid/high-end robots → Must choose Jetson Thor/AGX Orin

• For cost-effectiveness, industrial vision/AGV/service robots → Orin NX is the preferred choice

Low cost, education/small devices/trial production → Orin Nano only available

---

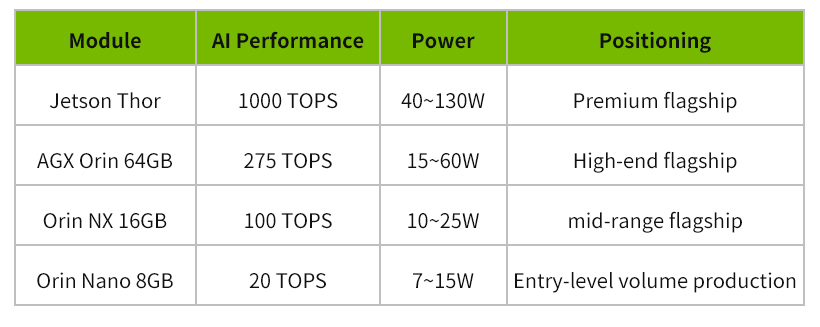

2. Summary Table of Core Parameters (Minimalist Version)

---

3. Select directly by scene (most practical)

① Humanoid/quadruped/embodied intelligent robot

→ Direct selection: Jetson Thor/AGX Orin 64GB

• Multi camera, multi-sensor, large model end-to-end inference

• EtherCAT real-time control, dynamic balancing, motion planning

• Currently the only option for mass production

② Industrial Vision/3D Vision/Disorderly Grasping

→ Preferred：Orin NX 16GB

• Sufficient computing power to run Yolo, RT-DETR, and point cloud processing

• Cost is half lower than AGX Orin, stable and not wasteful

• High precision requirements → Go to AGX Orin

③ Service Robot/Delivery Robot/AGV

→ Preferred：Orin NX 16GB

• Navigation+obstacle avoidance+sufficient voice and visual capabilities

• Low power consumption, low heat generation, and friendly battery life

④ Education, development board, maker, small batch trial production

→ only：Orin Nano

• Cheap, easy to buy, and eco-friendly

• Not suitable for truly mass-produced robots

⑤ Medical equipment/industrial safety/vehicle regulations edge

→ AGX Orin Industrial / IGX Orin

• Long lifecycle, wide temperature range, high reliability

---

4. Select based on performance ceiling

To run a multimodal large model（VLM / VLA）

• Jetson Thor/AGX Orin 64GB：can run

• Orin NX：Barely run the small model

• Orin Nano：Basically unable to run

Multiple camera access (≥ 6 channels)

• Jetson Thor/AGX Orin：No pressure

• Orin NX：Need expansion board

• Orin Nano：not suitable

Real time control (EtherCAT/1kHz control)

• AGX Orin / Orin NX all can

• Orin Nano Not recommended

---

5. Final sentence conclusion (must be memorized for sales/procurement)

1. High end robots, embodied intelligence, mass production projects → Jetson Thor/AGX Orin

2. Industrial vision AGV、 Service robots, cost-effectiveness → Orin NX

3. Low cost, development, education, small devices → Orin Nano



NVIDIA Jetson Core Advantages (Full Version)

---

1、 Top level: Why is Jetson the absolute leader in edge AI/robotics?

A sentence:

Strong performance, comprehensive ecosystem, stable iteration, fast implementation, mature mass production, no opponent can completely defeat it.

---

2、Jetson Eight core advantages

1. Strong computing power, top-notch energy efficiency, edge AI that no one can beat

• The industry leader in AI Performance, inference speed, and multitasking ability under the same power consumption

• Full coverage from entry-level to high-end：Nano → NX → AGX Orin → Thor

• Support FP8/FP16/INT8/FP4，natural advantage of large model end-to-end reasoning

• Robots, embodied intelligence, multi camera 3D vision without pressure

2. The most complete software ecosystem: out of the box, fastest development

• JetPack SDK One stop environment：CUDA、TensorRT、cuDNN、VPI

• Native support for ROS/ROS 2, standard platform for robot development

• Built in numerous optimization models：YOLO、RT-DETR、SAM、CLIP、VLM

• A large number of open source projects, tutorials, and communities, with the lowest cost of stepping into pitfalls

3. NVIDIA Full stack integration: simulation → training → deployment in one go

• Isaac Sim / Isaac Lab：The world's first robot simulation

• TAO、Triton：Model optimization, deployment, and pipeline maturity

• Cloud Training → Edge Deployment Seamless transition

• The most user-friendly platform for embodied intelligence (VLA)

4. The highest maturity of mass production and the most stable supply chain

• Worldwide shipment of millions of pieces, industrial grade verification

• Life cycle of 8-10 years, suitable for long-term mass production of products

• Global supply, stable delivery time, and transparent pricing

• A large number of third-party carrier/machine manufacturers: Rraltimes, Tianzhun, Advantech, Linghua, etc

5. The factual standard for robots/embodied intelligence

• 90% of humanoid and quadruped robots worldwide use Jetson

• Multi sensor, multi camera, EtherCAT real-time control, low latency

• The preferred platform for dynamic balance, motion planning, and large-scale model end-to-end deployment

6. Extremely compatible, almost compatible with all scenarios

• Industrial vision AGV/AMR、 Service robots, healthcare, quality inspection, drones, smart cities, vehicle edge

• From dozens to hundreds of TOPS, a complete set of technology stack can handle everything

• Customers don't need to change platforms, they can directly iterate and upgrade

7. Strong toolchain, saving manpower, time, and cost

• TensorRT automatic acceleration, performance improvement by several times

• One stop shop for model compression, quantization, and optimization

• Complete support for debugging, monitoring, logging, and OTA

• The development cycle is 3-12 months shorter than other platforms

8. The strongest brand and technology endorsement

• NVIDIA = AI pronoun

• High customer trust, bonus points for bidding, approval, and financing

• Continuous iteration: Orin → Thor generation by generation stronger than generation

• Long term technical support, no need to worry about manufacturers running away

---

3、Minimalist Summary (One sentence Version for Sales/Reporting)

Jetson is currently the world's strongest edge AI platform with the most complete ecosystem, simplest development, most stable mass production, and most mainstream robot and embodied intelligence. It is the "standard brain" of high-end intelligent hardware.

Realtimes Beijing Technology Co.,LTD.(referred to as Realtimes) is the highest level Elite Partner of Nvidia Jetson and one of the core suppliers of Jetson carrier boards and edge machines in China.

1、Basic company information

• Full name:Realtimes Beijing Technology Co.,LTD.

• establish:In 2013, a national high-tech enterprise

• Positioning:Focus on Jetson carrier board, AI edge computing machine (NeuroCub Samrt box), embodied intelligent brain (NeuroCub Platform)

• Qualification:NVIDIA Jetson Elite Partner、ISO9001

• Production:3000 ㎡ outsourced production and testing base, supporting batch delivery

2、Jetson Product Line (Core)

1. Full range Jetson carrier boards

Covering all modules from entry-level to flagship, compatible with the latest Orin/Thor platforms：

• Orin series：Orin Nano、Orin NX、AGX Orin(industrial grade) carrier board

• Thor series：AGX Thor、T4000/T5000 Specialized carrier board (first batch in China)

• Classic Series：TX2、Xavier NX、AGX Xavier carrier board

• Interface features：Multi PoE, GMSL2, CAN FD, EtherCAT, isolated I/O, wide temperature design

2. NeuroCub Samrt box(AI edge computing machine)

• Fanless/reinforced type, industrial grade wide temperature range (-40 ℃~85 ℃)

• Pre installed JetPack, out of the box, supports 5G/4G/Wi Fi expansion

• Representative:NeuroCub Samrt box(Thor/Orin)X406、Z201

3. NeuroCub Platform(Equipped with intelligent brain, the world's first batch of mass production, industry-leading)

• Full coverage of computing power: RTS-AGO/AGT series covers 200/275/600/1000 TOPS

• The interface is specially customized for embodied/humanoid robots, with multi sensing access, real-time control bus, ultra high speed interconnection, high-precision timing, and supports PPS clock synchronization

• Hardware design adapted to robot body (strong engineering), adopting compact design, intelligent heat dissipation, industrial grade reliability, anti vibration, EMC protection design, equipped with high-speed durable large capacity storage, multiple wireless communication extensions, hardware ecology adapted to Orbbec, Realsence, Zed, Senyun Livox、 Mainstream perception devices such as Sagitar.

• Software Stack and Ecology (Deep Adaptation to Jetson): Native support for Isaac, deep adaptation to NVIDIA Isaac Sim/Isaac Lab/GR00T, providing an end-to-end toolchain from simulation to deployment; Linux real-time kernel (PREEMPT_RT), pre installed with Ubuntu system; Support distributed control, pre installed ROS/ROS 2, support multi robot distributed control; IGH EtherCAT master station, pre installed with IGH open-source EtherCAT master station protocol stack, supports low latency communication; Large model deployment, supporting localized deployment of VLA large models, reducing the threshold for implementation.

4. Customization and ODM

• Carrier board interface cutting, sensor integration, heat dissipation/structural customization

• Humanoid robots AGV、 Industrial vision, vehicle mounted multi camera dedicated solution

3、Core advantages (compared to other manufacturers)

1. The highest official qualification：Jetson Elite Partner，driver/BSP deep adaptation, Thor initial support

2. Industrial grade reliability：Wide temperature range EMC、 Isolated I/O, suitable for harsh on-site conditions

3. Outstanding cost performance：Standardized carrier board prices are 30% -50% lower than international brands

4. Flexible delivery：Quick delivery for small batches (10-500 pieces), with a lead time of 1-3 weeks; Large scale stable supply (8-10 years)

5. Strong technical service：Local FAE, BSP customization, sensor debugging, and mass production support
