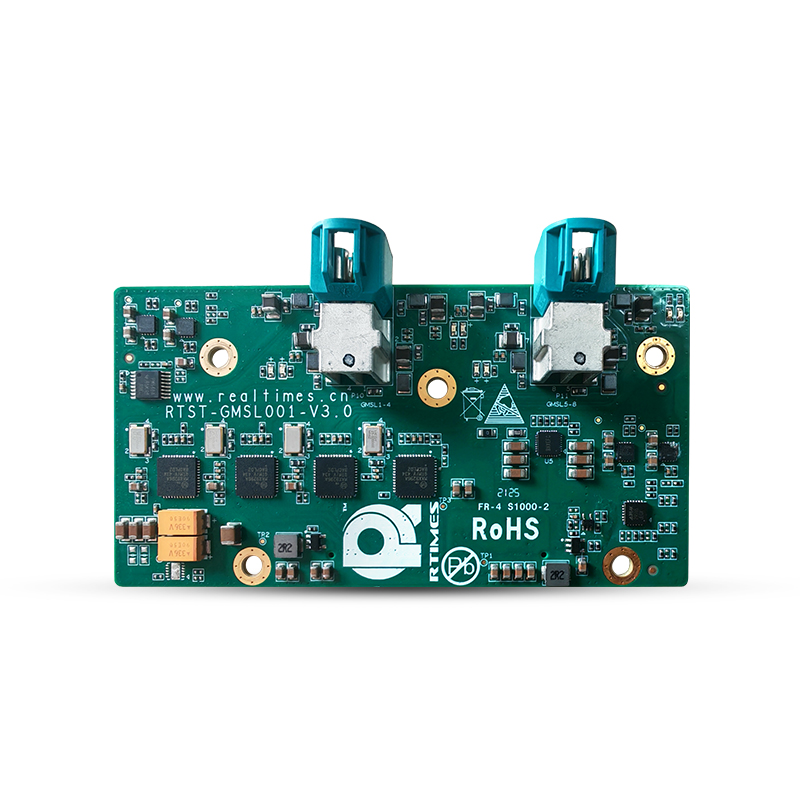

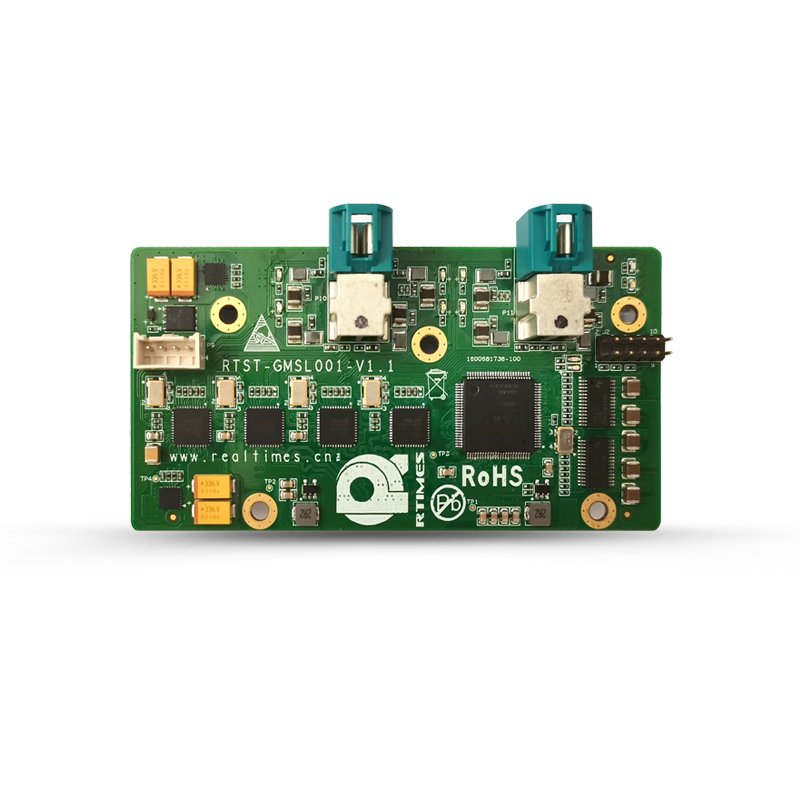

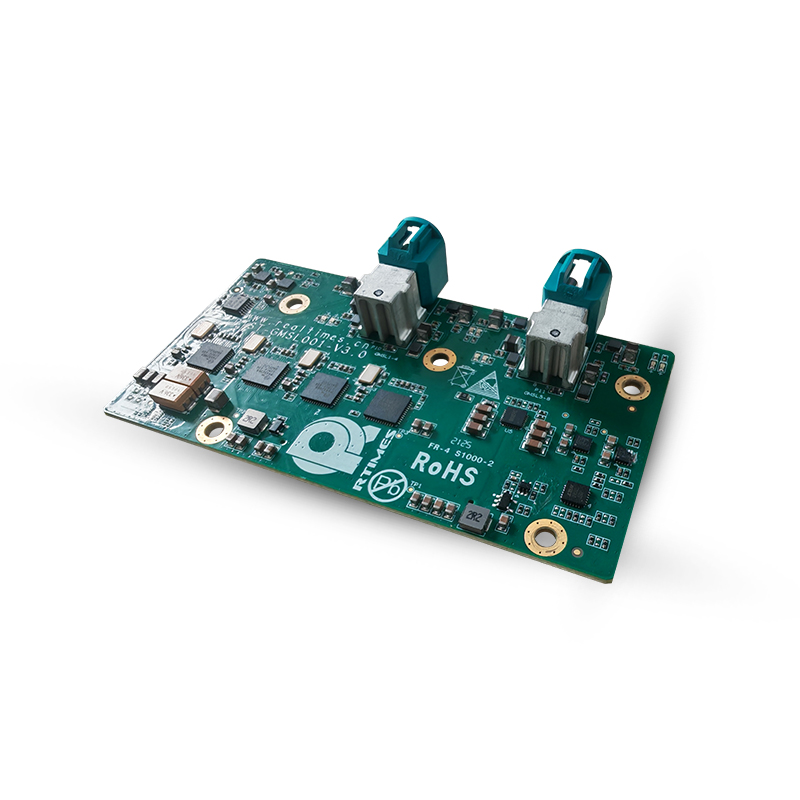

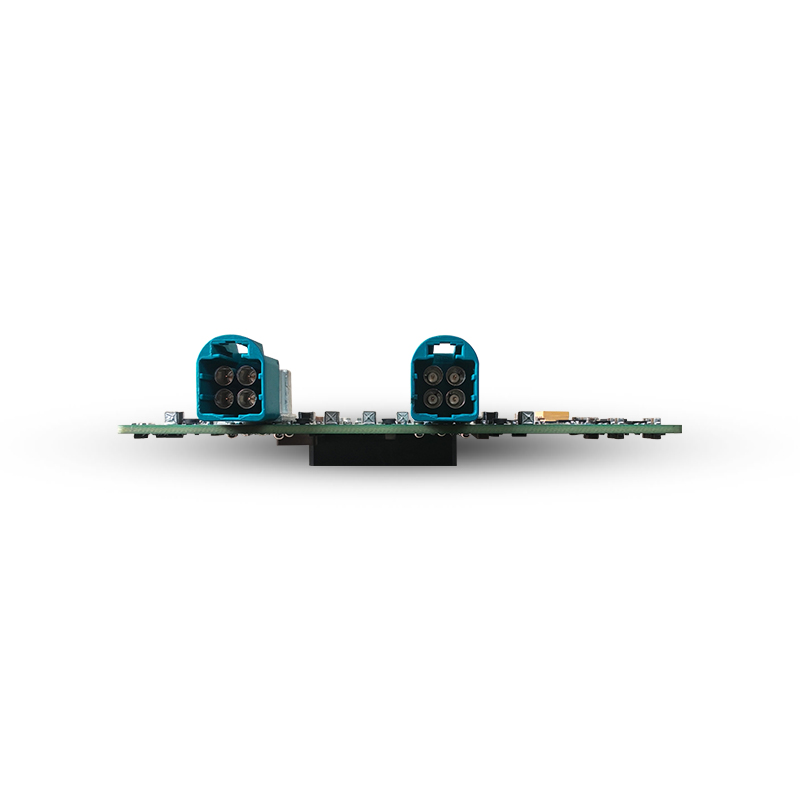

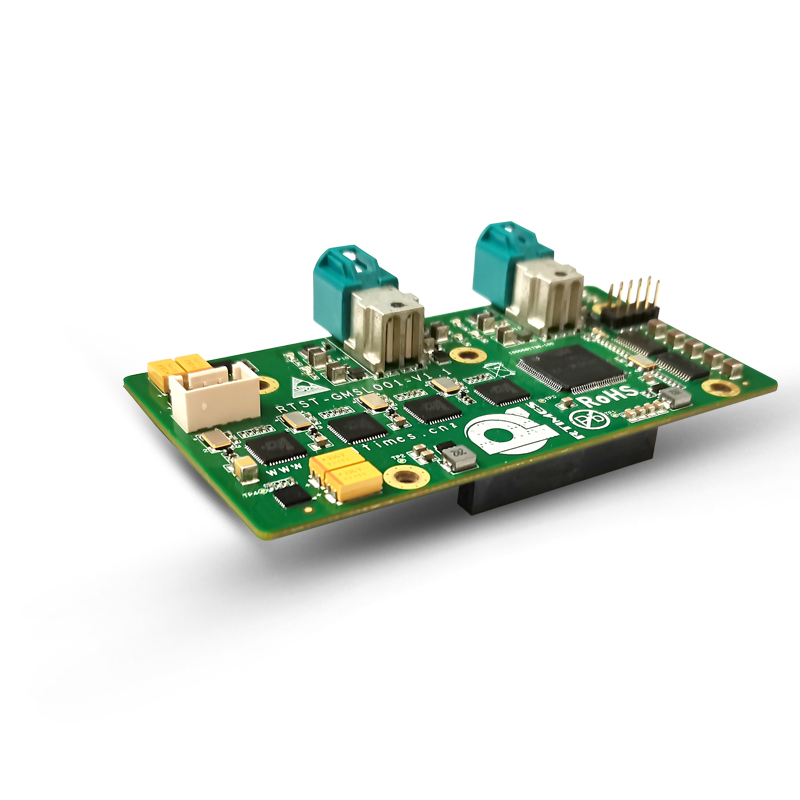

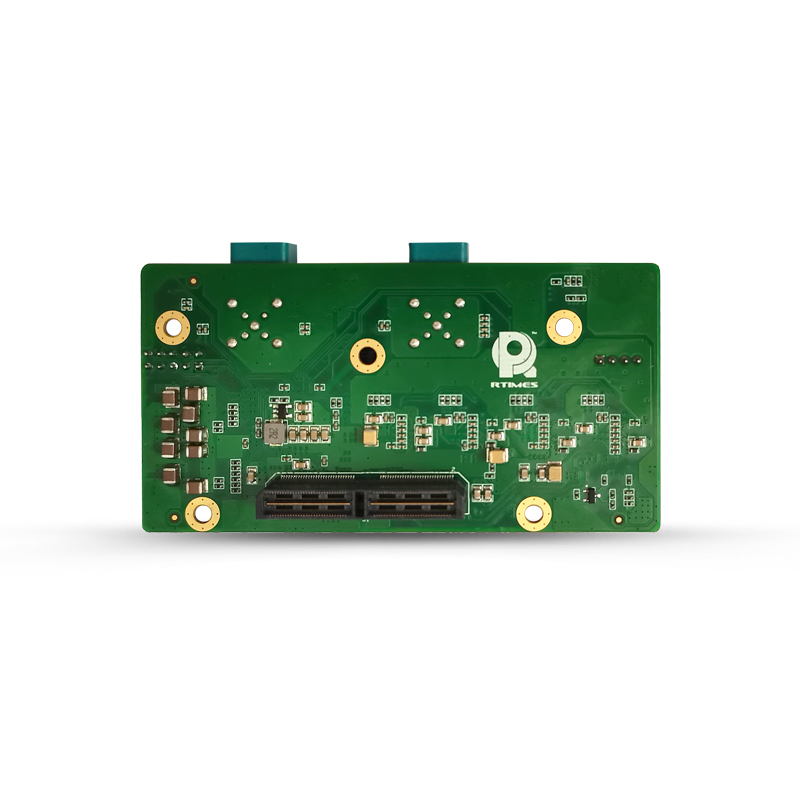

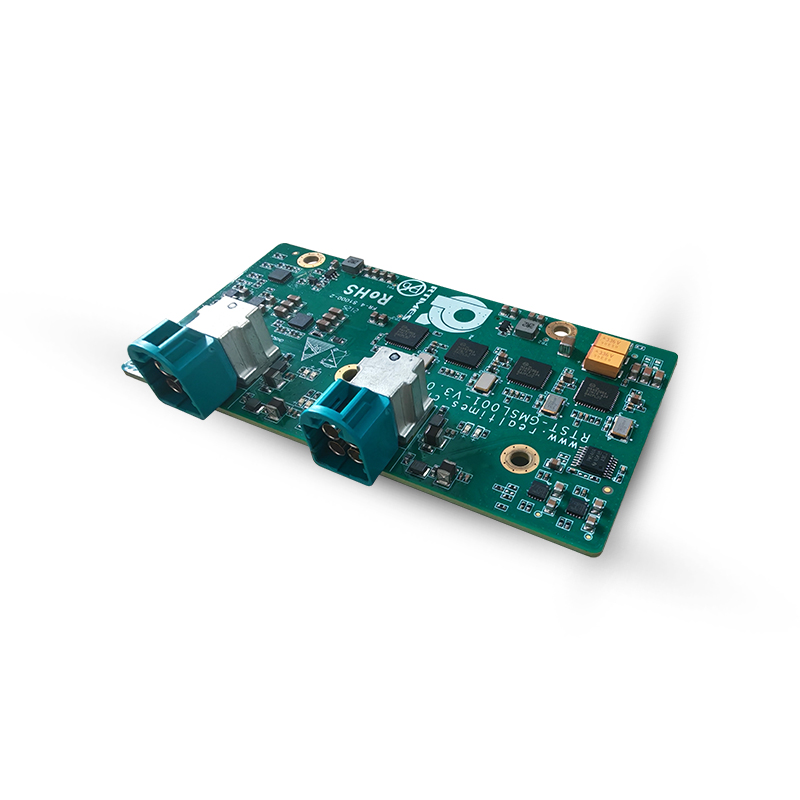

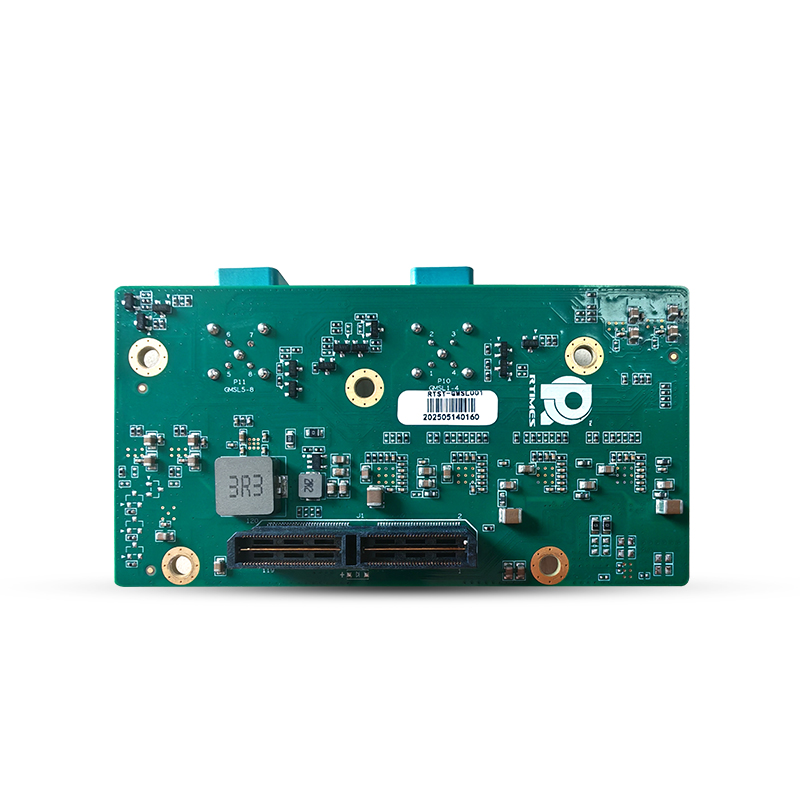

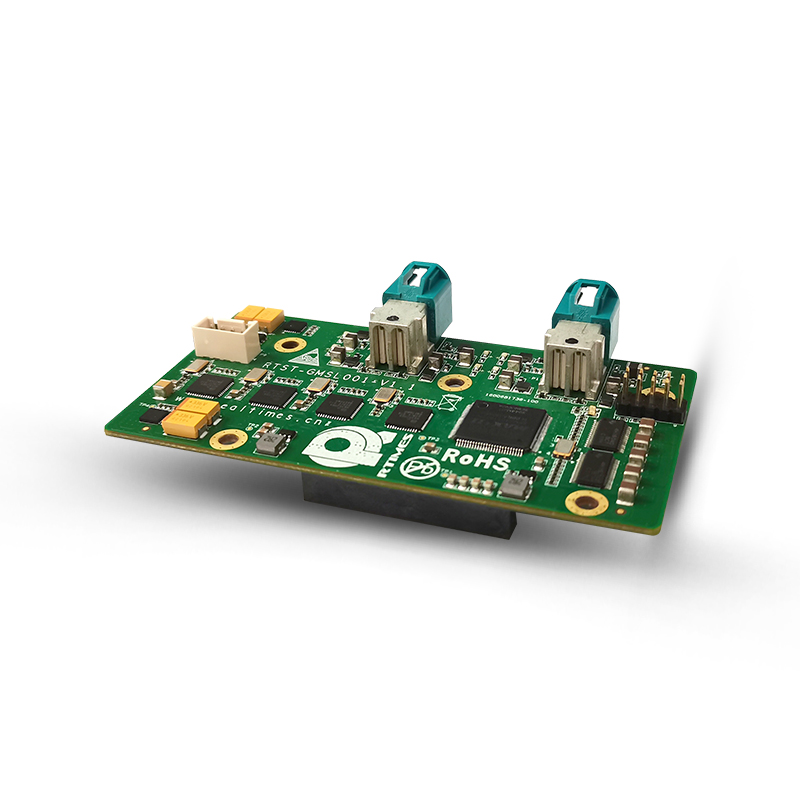

Product description: The RTST-GMSL001 camera expansion board adopts a compact industrial design and is capable of operating in a wide temperature range of -40℃ to 80℃. It is developed specifically for humanoid robots and embodied intelligent multi-camera vision systems. This expansion board is specifically designed to provide GMSL2 camera interface expansion capabilities for the RTSO-1001 and RTSO-2005 series carrier boards. The product supports the integration of mainstream GMSL2 monocular and binocular depth cameras and is compatible with cameras from brands such as Orbbec, StereoLabs ZED, Intel RealSense, Sensing, and Leopard. The system can simultaneously connect up to 8 channels of GMSL/GMSL2 monocular cameras (1080p@30fps) or 4 channels of binocular depth cameras, providing a high-bandwidth and highly re
∷
