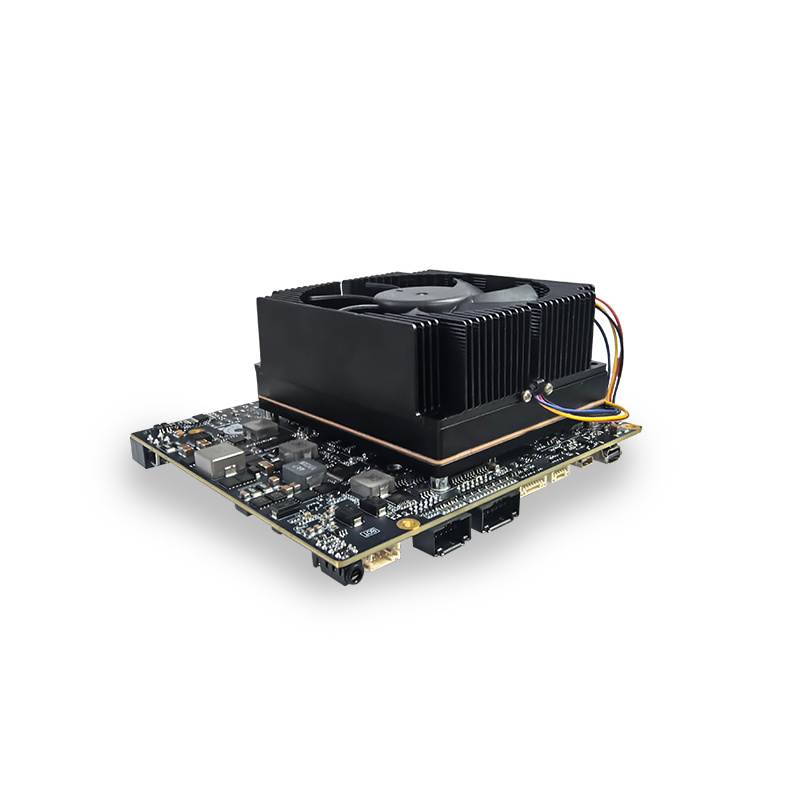

NeuroCub Platform RTS-AGT200 Series

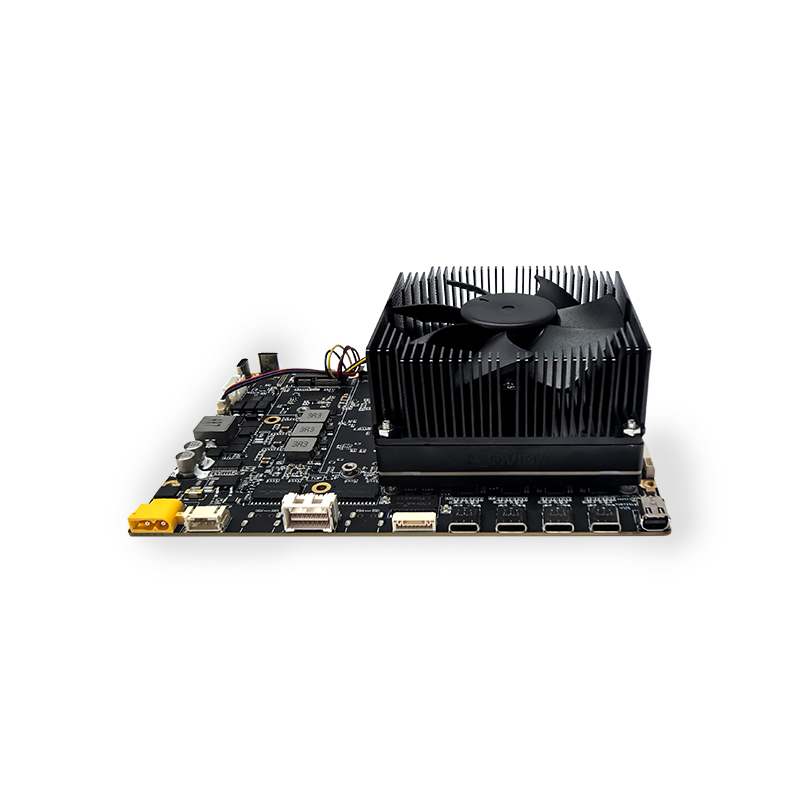

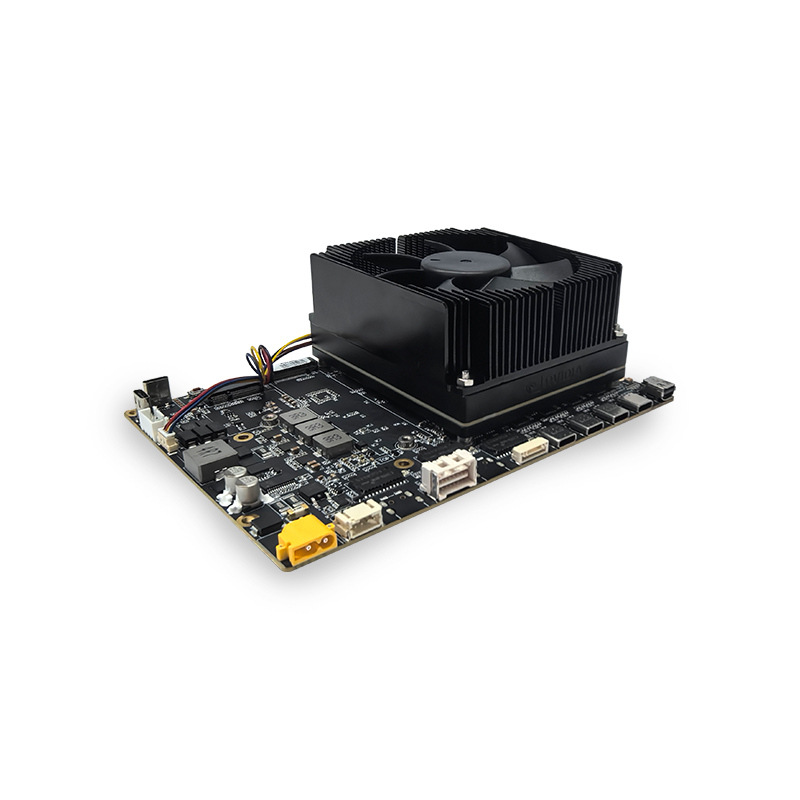

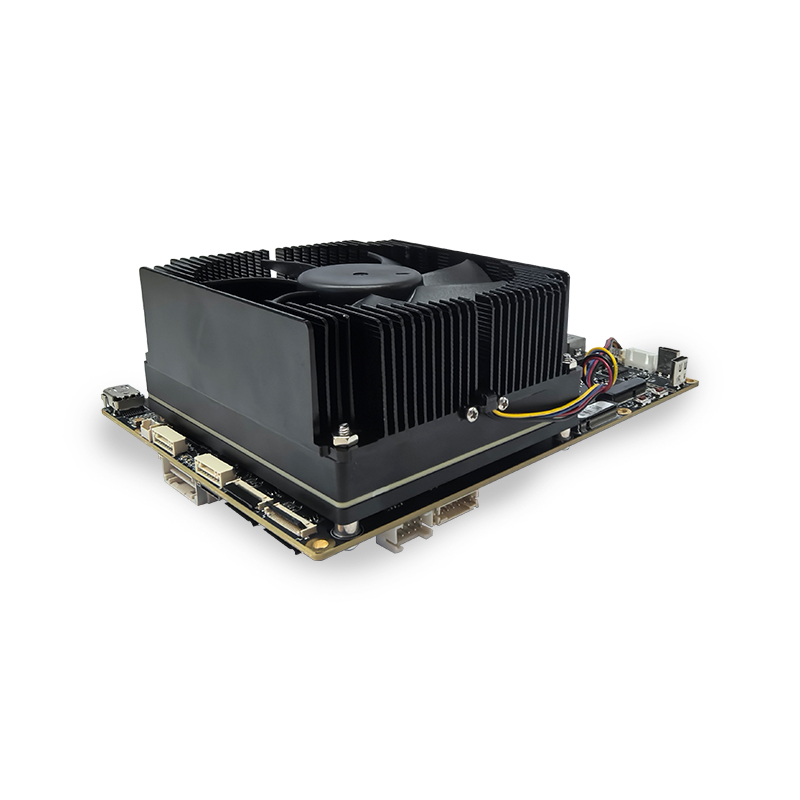

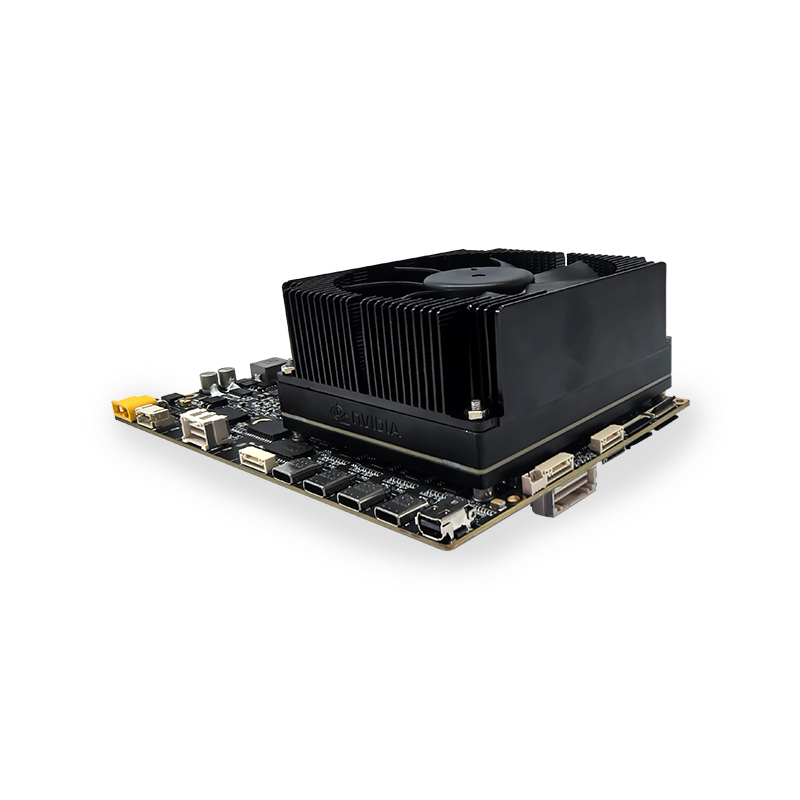

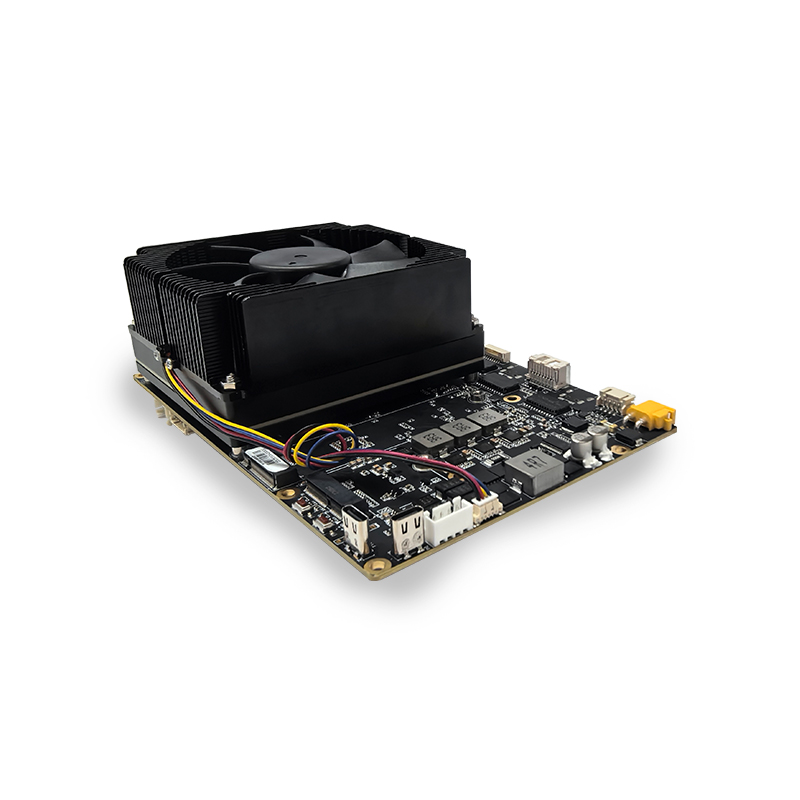

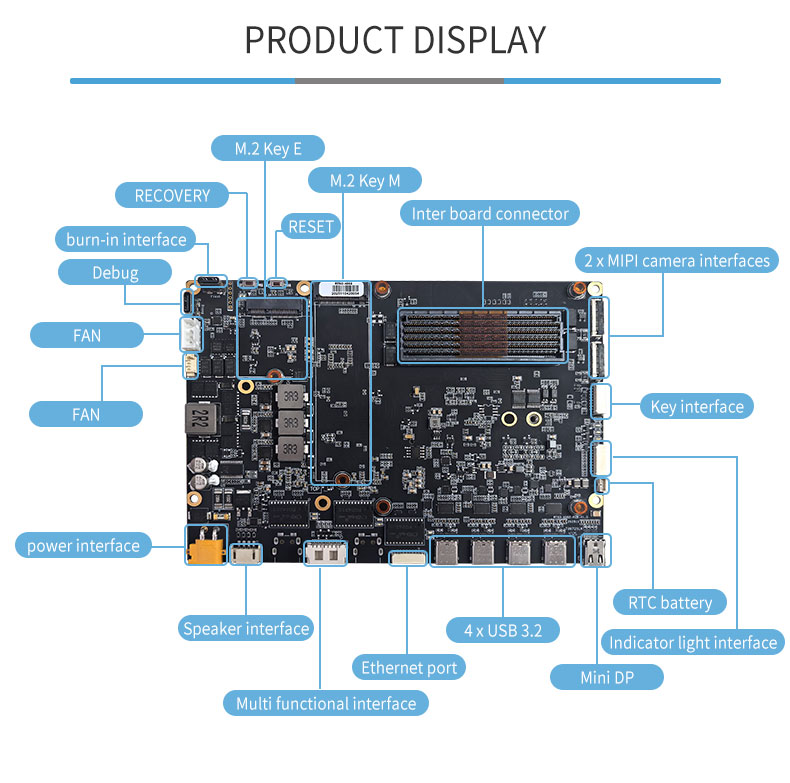

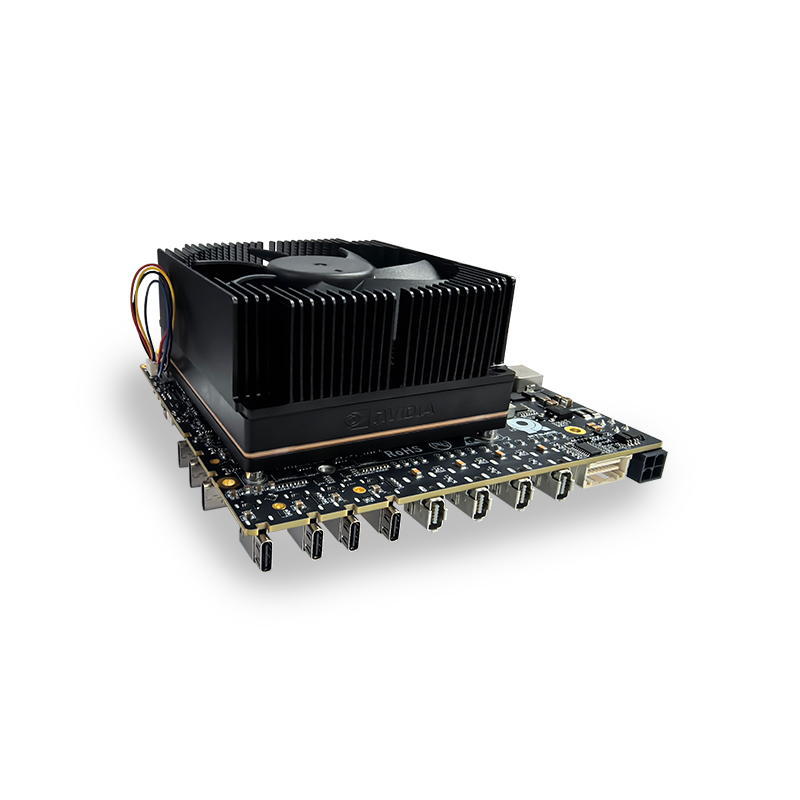

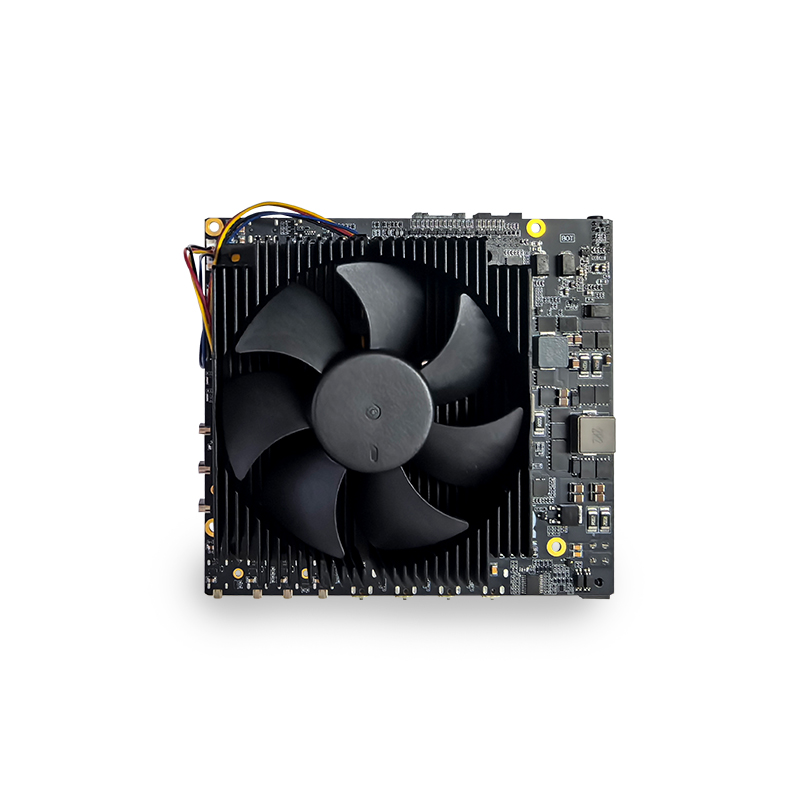

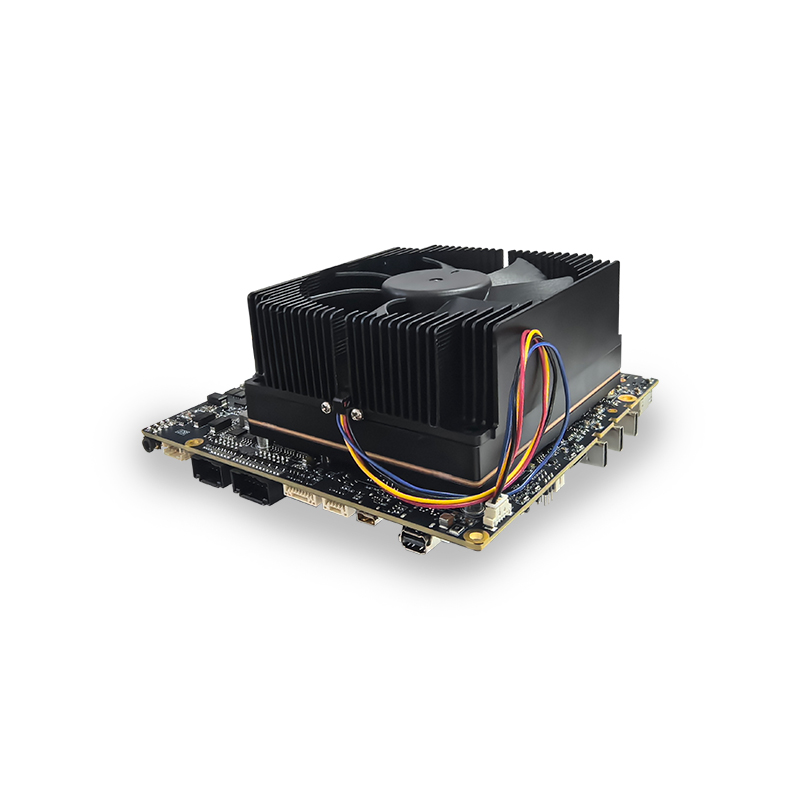

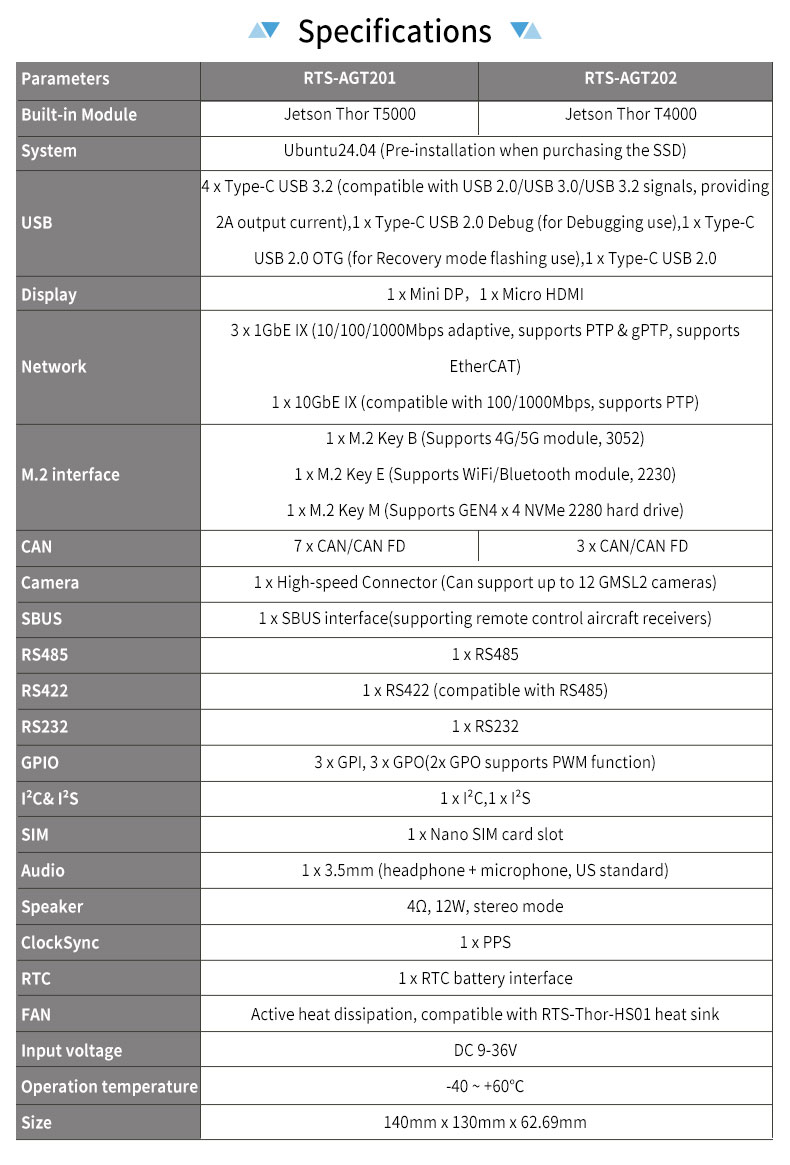

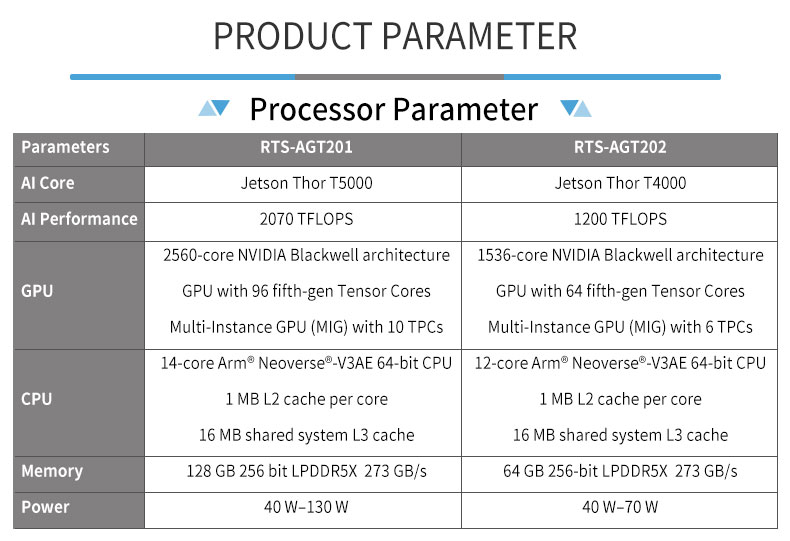

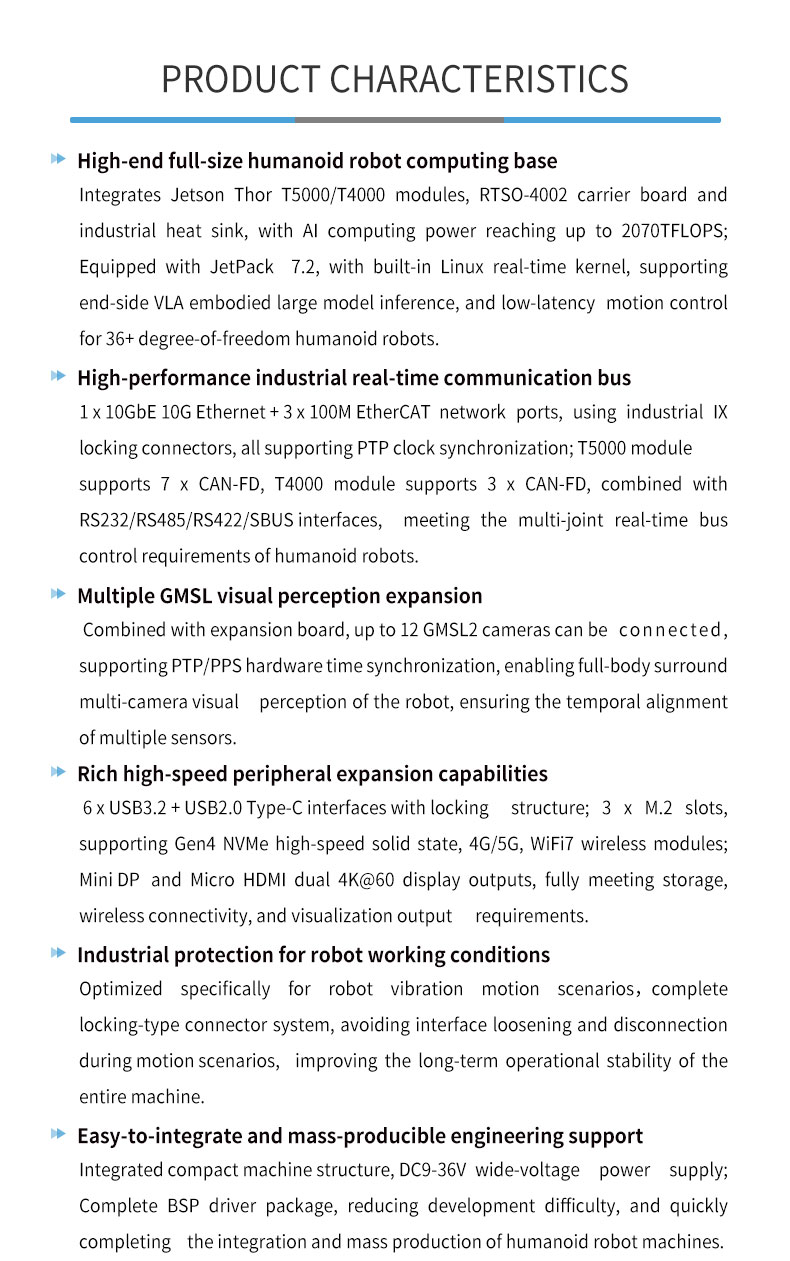

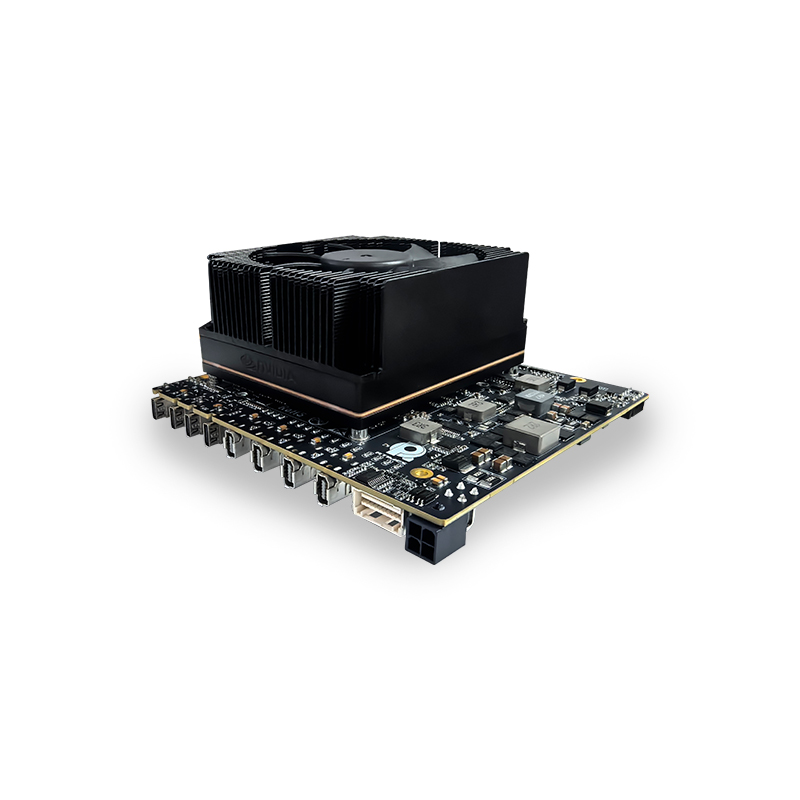

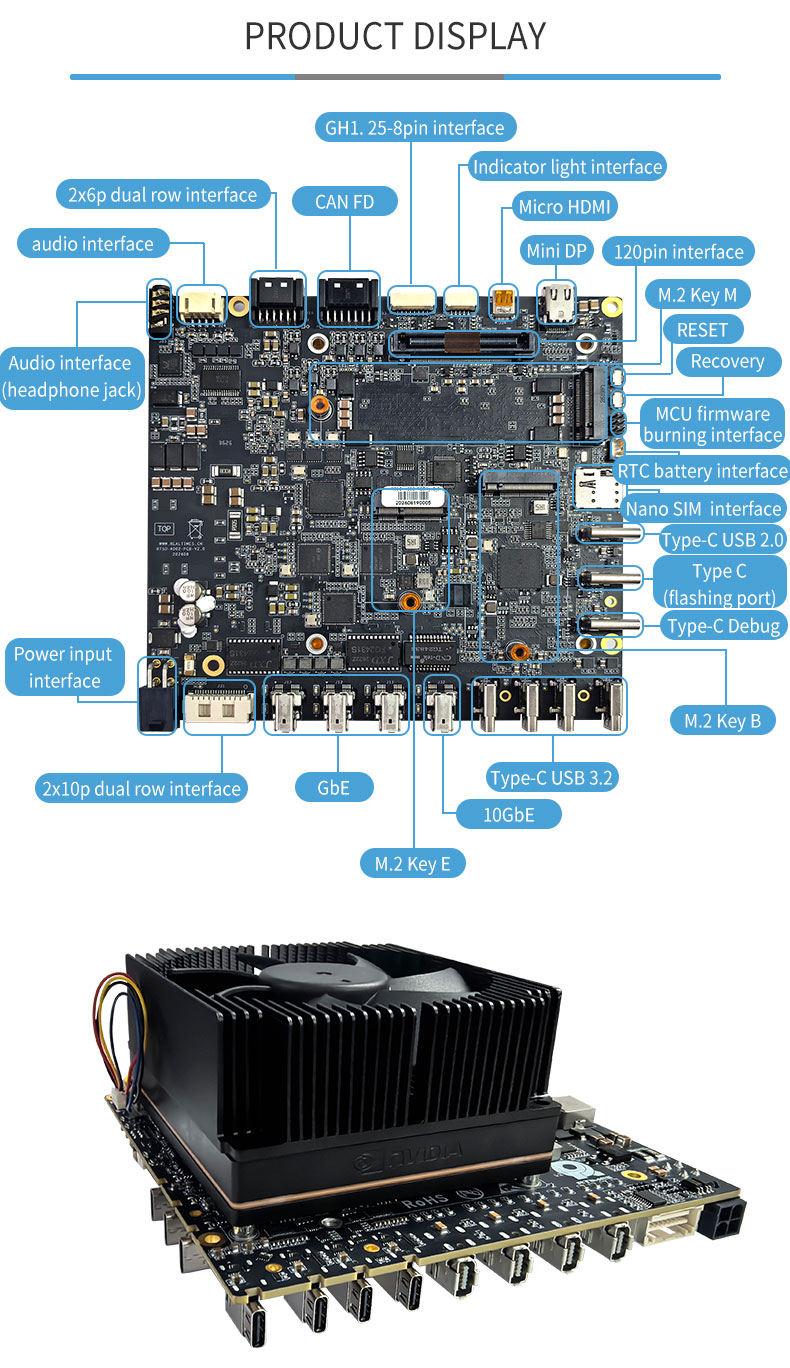

• Product description: Feiyun NeuroCub Platform RTS-AGT200 is Realtimes’s machine brain for high-end humanoids and low-latency embodied intelligence. Powered by Jetson Thor T5000/T4000, RTSO-4002 carrier board and industrial heatsink, it enables on-device LLM inference and high-freedom real-time motion control.It features 1×10G + 3×1G EtherCAT (IX, PTP sync): T5000 has 7×CAN-FD, T4000 3×CAN-FD, plus RS485/RS422/RS232/SBUS. It supports up to 12 synchronized GMSL2 cameras, 6 lockable Type‑C, M.2 slots for Gen4 NVMe, 4G/5G, WiFi7/Bluetooth and dual 4K@60 outputs.Rated -40℃ ~ +60℃, 9–36V input, it ships with JetPack 7.2 + Ubuntu 24.04 RT kernel & BSP. It offers board-level perception, joint control and VLA inference to accelerate humanoid embodied controller prototyping.
