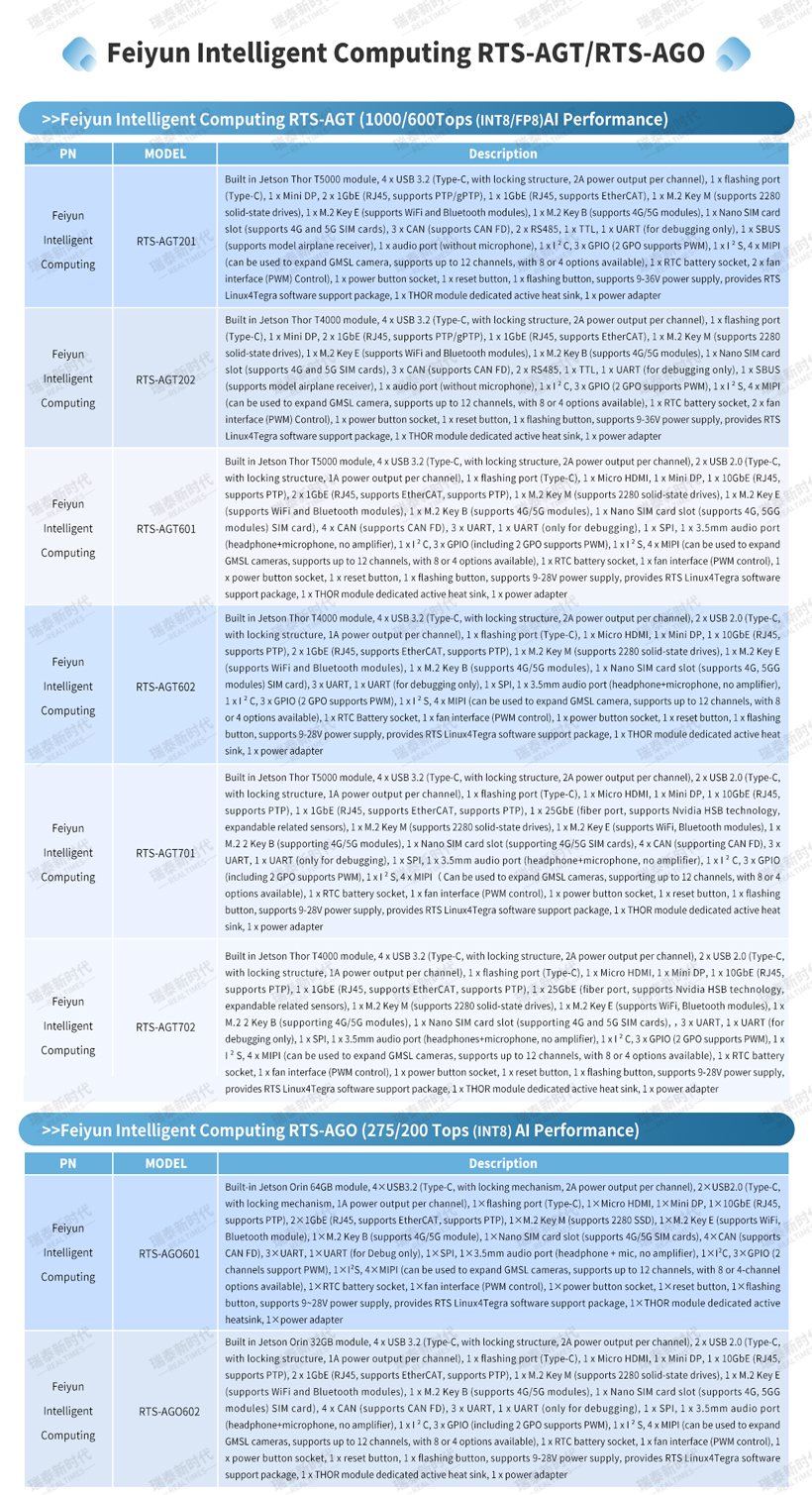

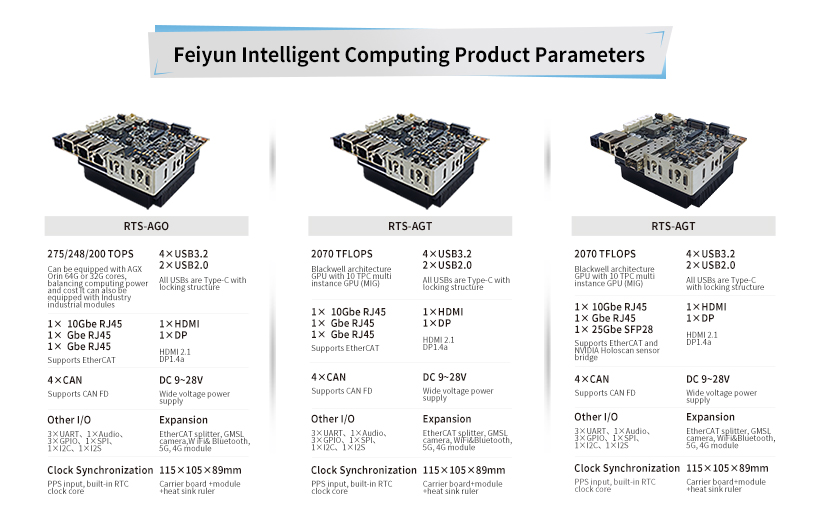

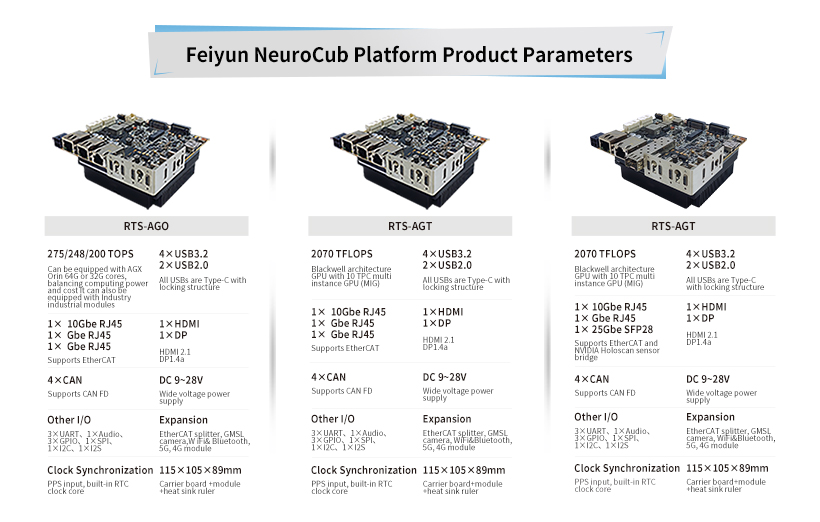

The Jetson embodied intelligent robot brain developed by Realtimes—Feiyun Intelligent Computing RTS-AGO/AGT—offers four computational power levels of 200/275/600/1000 TOPS, featuring the following characteristics.
1. Compact industrial design with a small footprint (115mm x 105mm), capable of meeting the special dimensional requirements of robots in confined spaces;

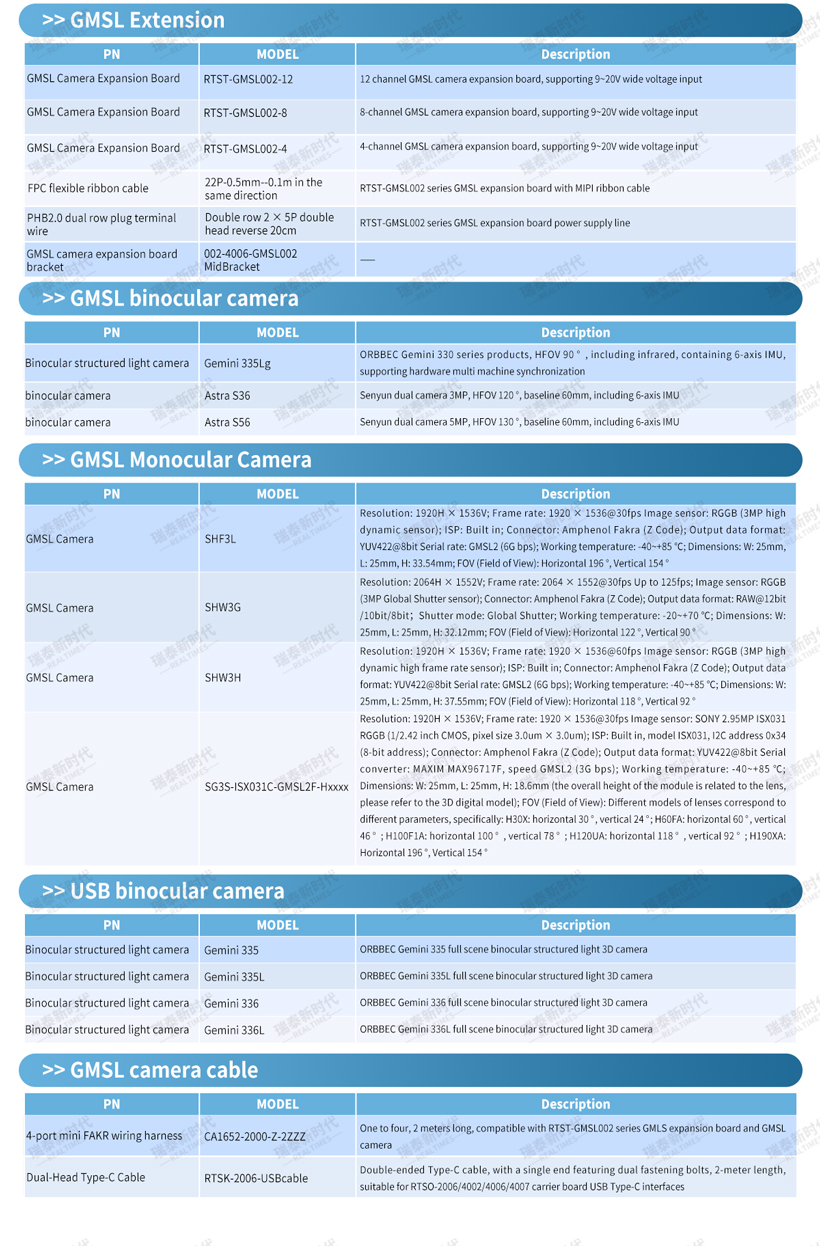

2. 6 USB ports and 12 GMSL interfaces can connect a sufficient number of cameras, with locking designs on the connecting cables;
The 3 and 4 CAN FD interface designs can meet the humanoid robot's special requirements for high communication real-time performance, large bandwidth, and electromagnetic interference resistance;
4. Designed with 3 independent network ports, supporting 10G electrical ports and 25G optical ports, compatible with the EtherCAT protocol. It features nanosecond-level synchronization accuracy, low latency, and flexible topology, enabling precise alignment with core requirements such as complex motion control for humanoid robots and multi-device collaboration;
5. Equipped with PPS clock synchronization functionality, it provides time accuracy at the 20ns level or higher, along with low jitter characteristics, enabling high-precision temporal coordination for core tasks such as perception, motion execution, and multi-robot collaboration in humanoid robots;
6. Dual-screen display, supports DP+HDMI duplicate or extended display modes, with resolution up to 4K@60fps;

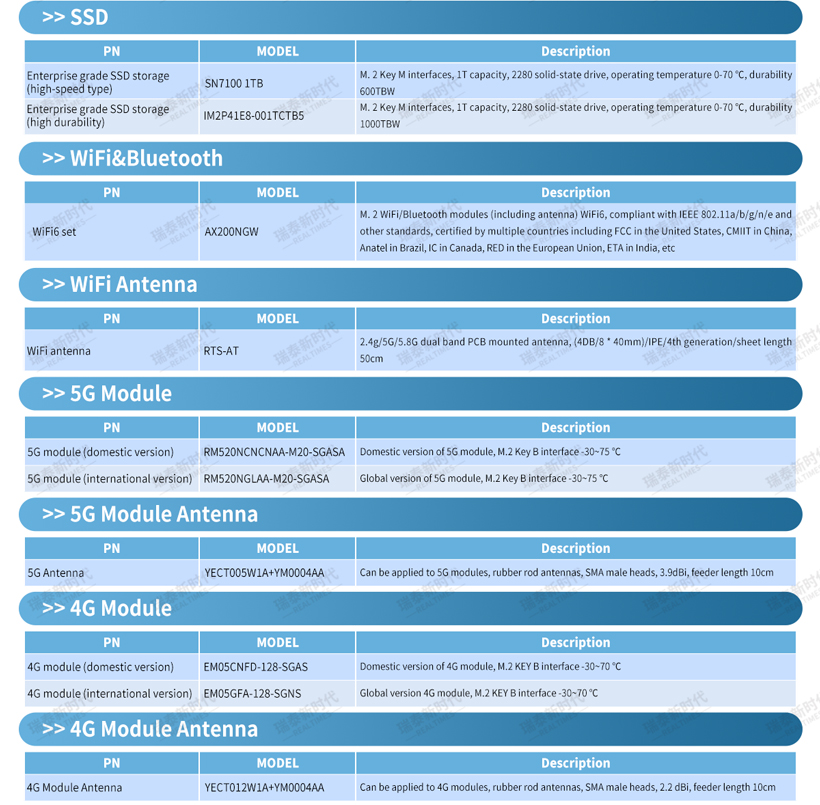

7. Supports high-capacity NVMe SSD storage and features 4G/5G/Wi-Fi/Bluetooth wireless communication capabilities.
The first-generation Jetson AGX Orin, featuring 275 TOPS computing power, has passed customer mass production verification and achieved shipments of several thousand units. The second-generation product, with 1,000/600 TOPS computing power, is currently in the mass production phase
