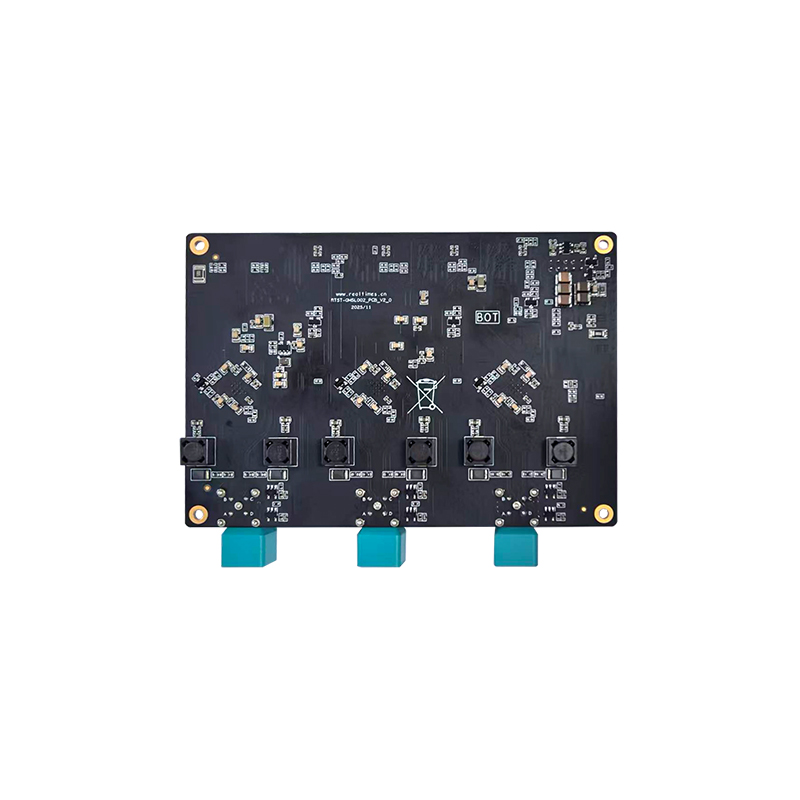

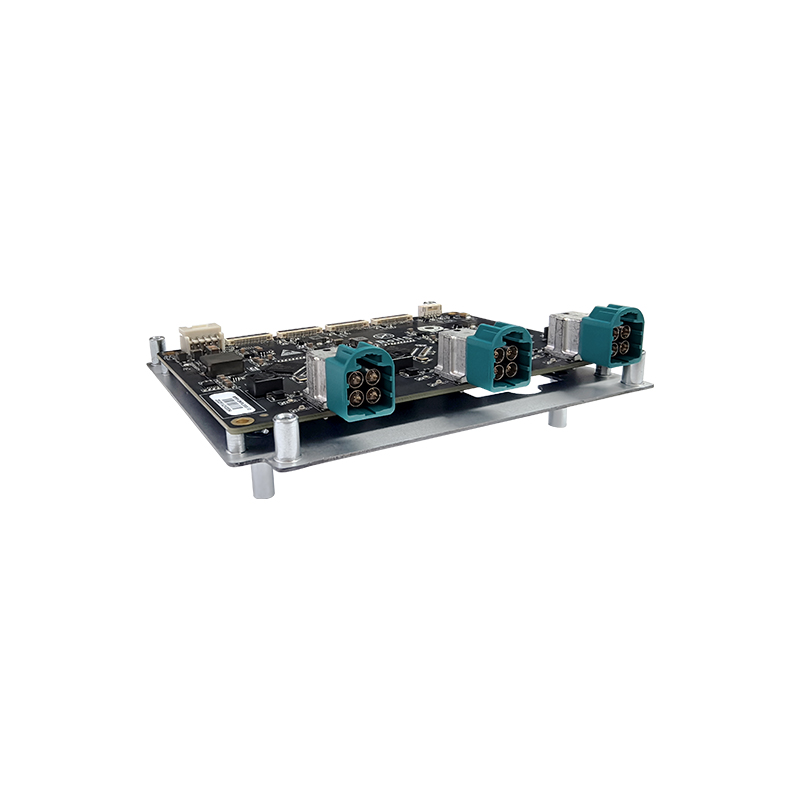

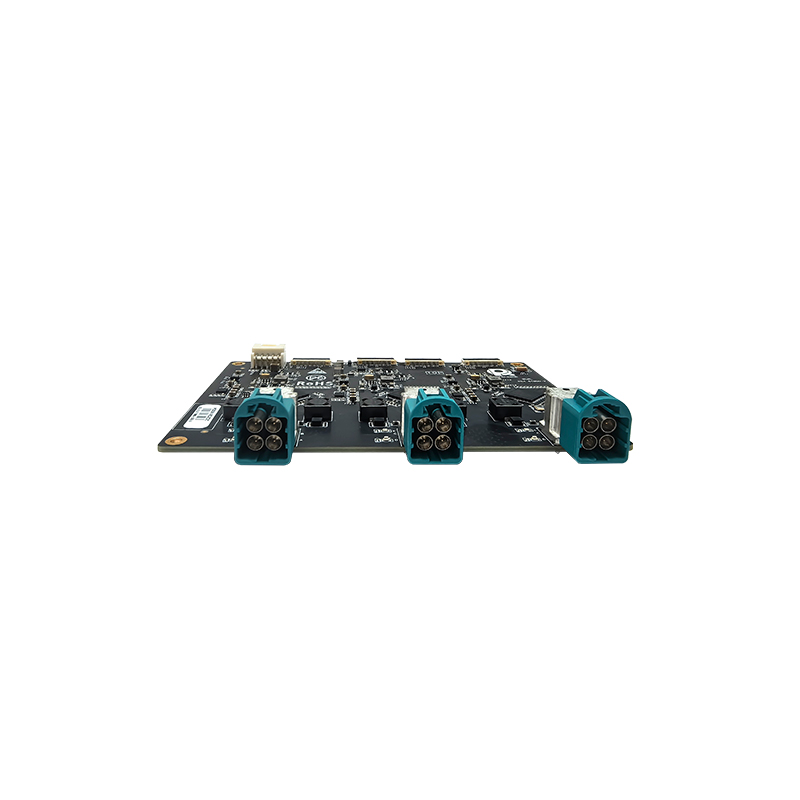

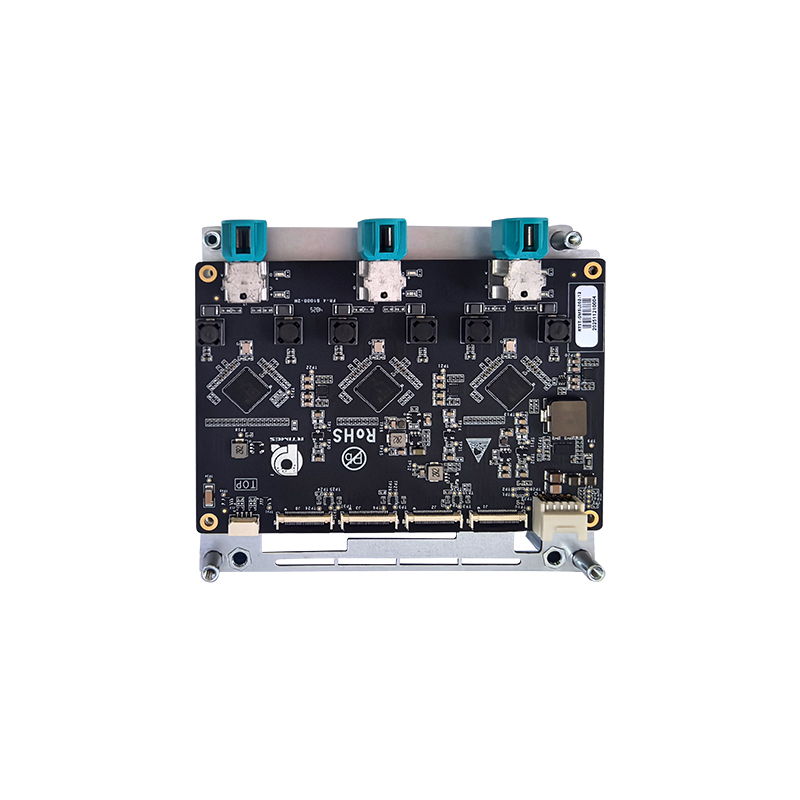

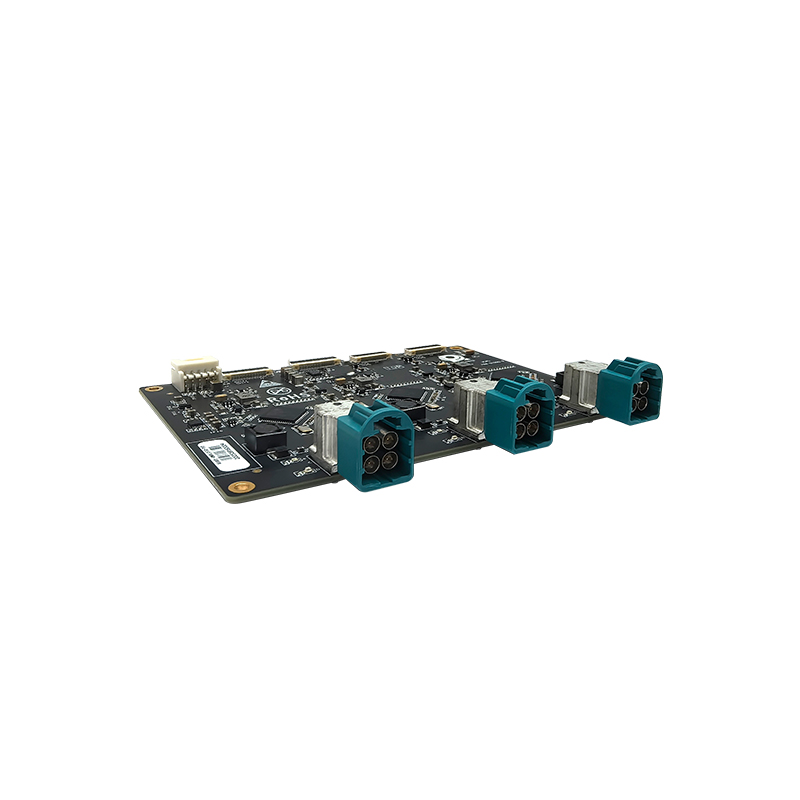

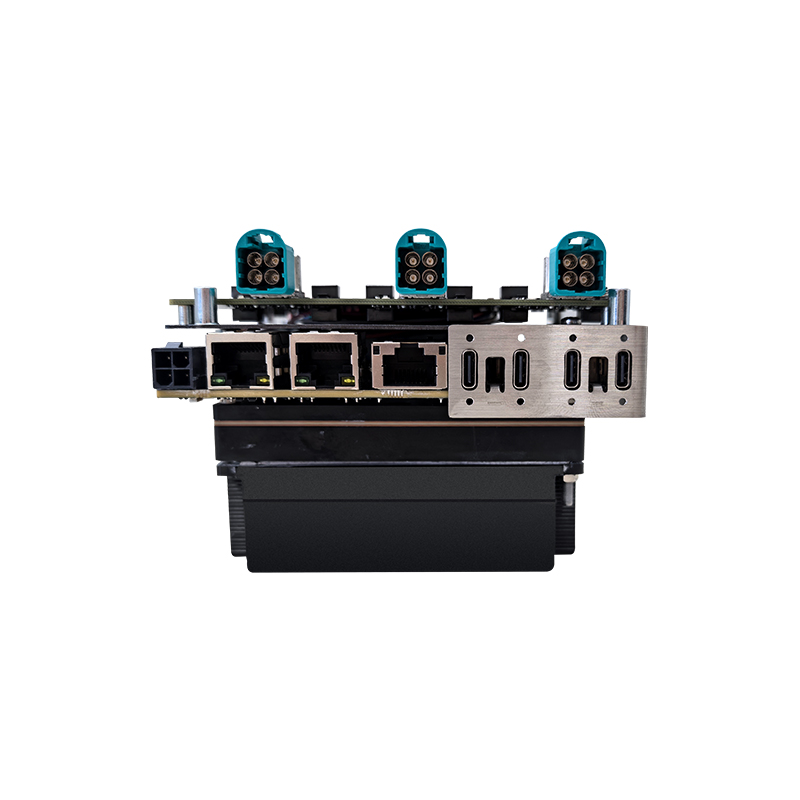

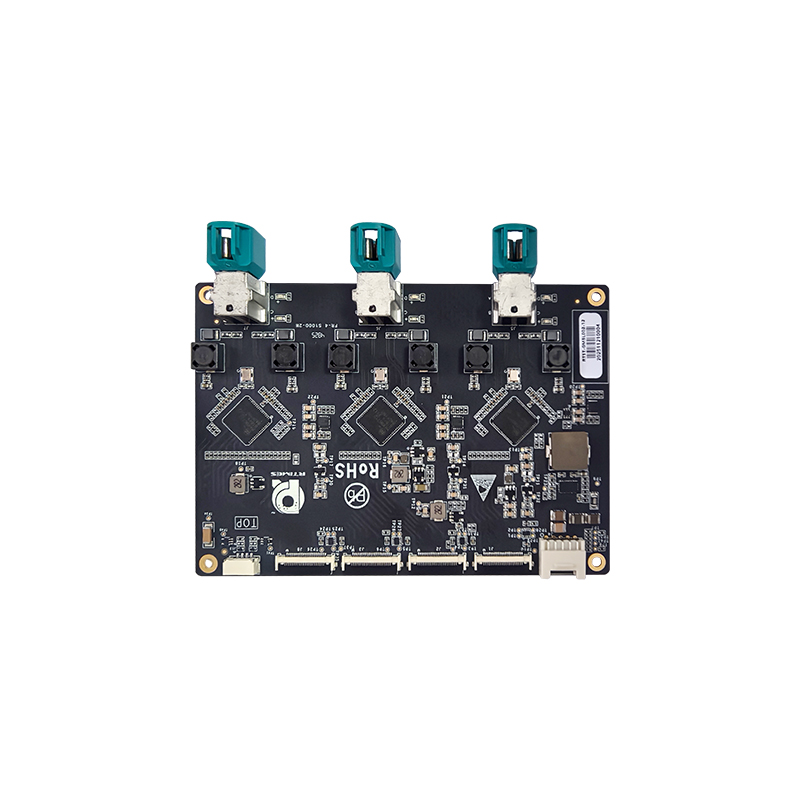

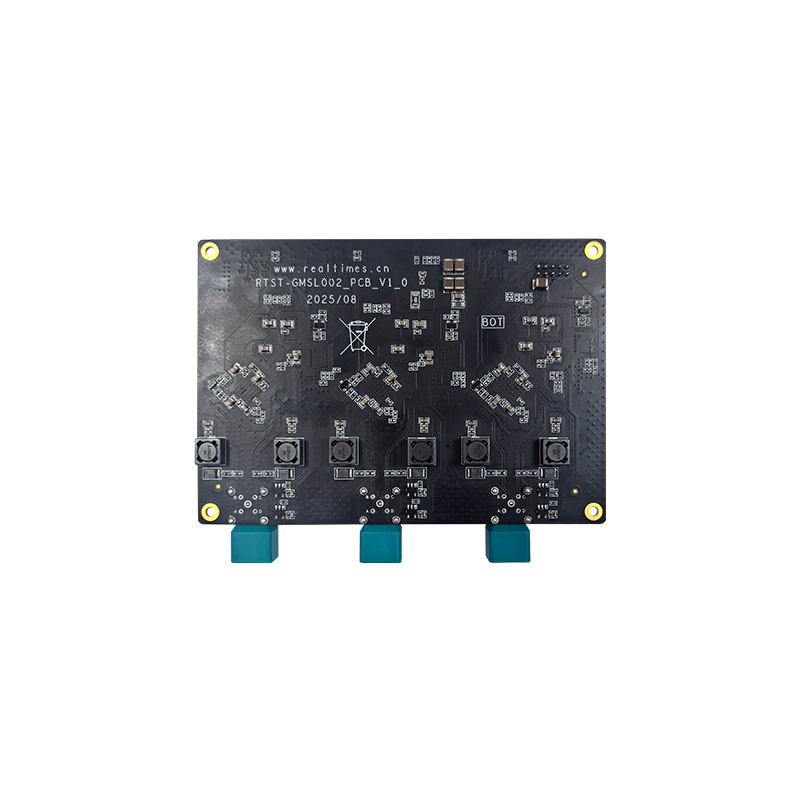

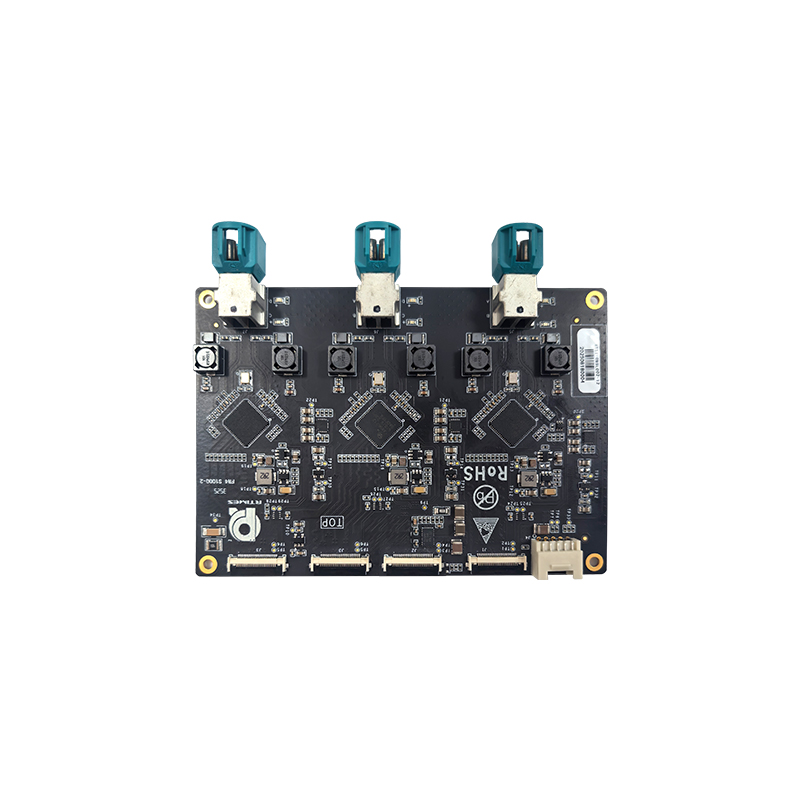

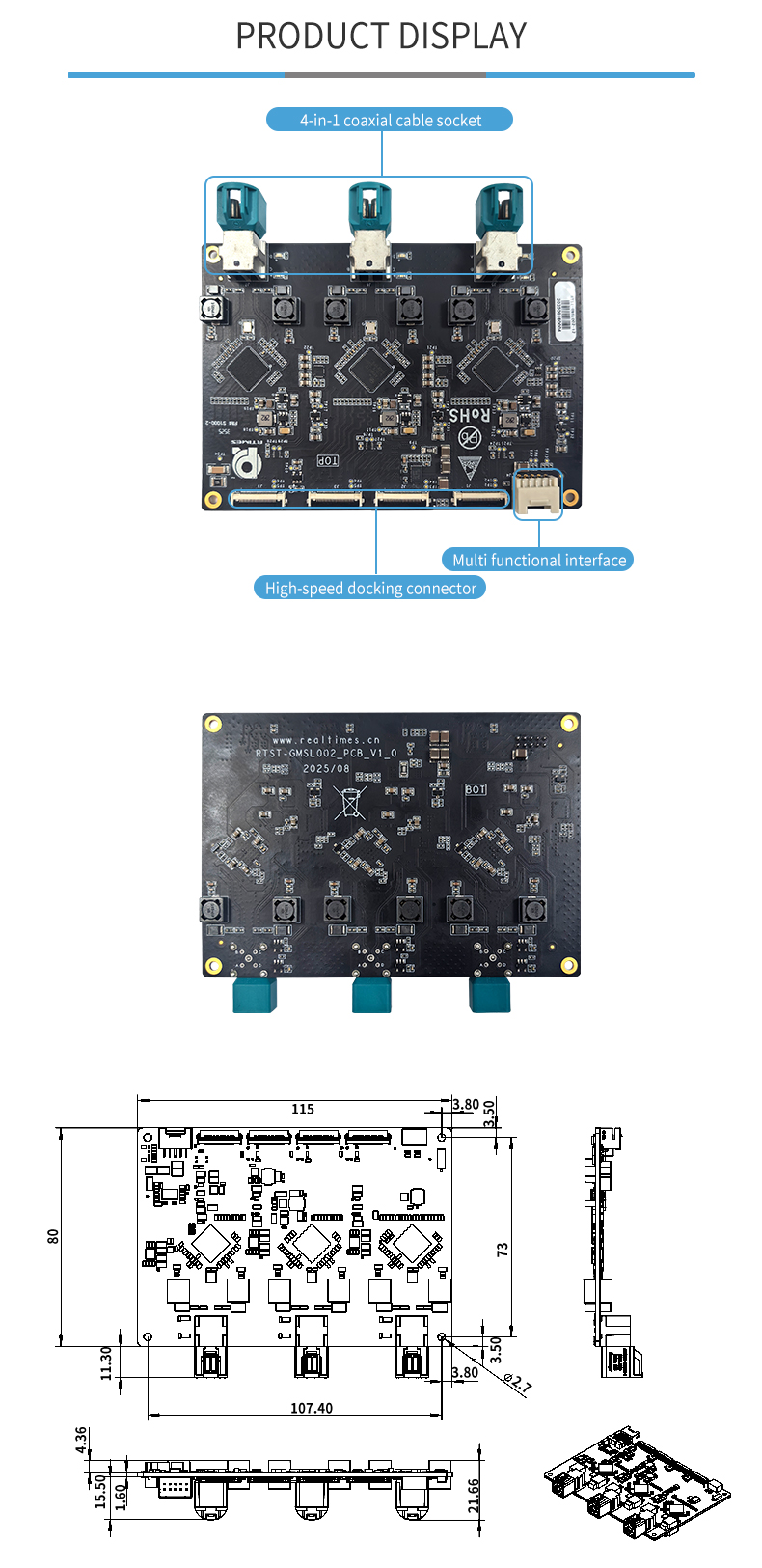

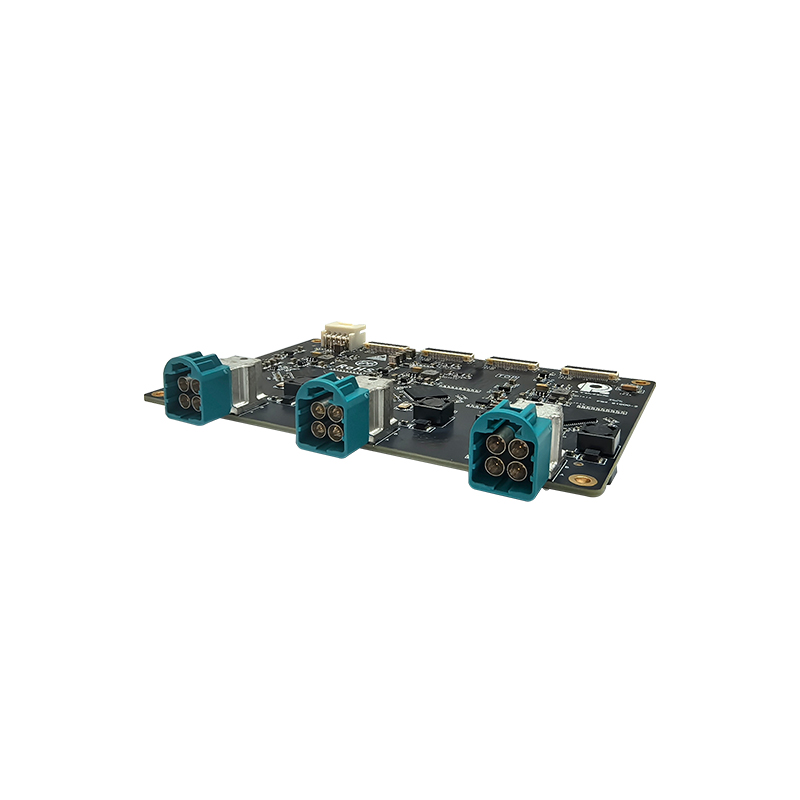

Product description: The RTST-GMSL002-12 camera expansion board adopts a compact industrial design, supporting a wide temperature range of -40℃ to 80℃. It is developed for humanoid robots and embodied intelligent multi-camera vision systems. This expansion board is specifically designed to provide GMSL2 camera interface expansion capabilities for the RTSO-2006, RTSO-4006, RTSO-4007, and RTSO-4002 series carrier boards. The product supports the mainstream GMSL2 monocular and binocular depth cameras, and is compatible with cameras from brands such as Orbbec, StereoLabs ZED, Intel RealSense, Sensing, and Leopard. The system can simultaneously connect up to 12 GMSL/GMSL2 monocular cameras (1080p@30fps) or 4 binocular depth cameras (Orbbec 335Lg).
∷
